1. 技术选型

---

• 注册中心：nacos，替代方案eureka、consul、zookeeper

• 配置中心: nacos ，替代方案sc config、consul config

• 服务调用:feign，替代方案：resttempate

• 熔断：sentinel、，替代方案：Resilience4j

• 熔断监控：sentinel dashboard

• 负载均衡:sc loadbalancer

• 网关：spring cloud gateway

• 链路：spring cloud sleuth+zipkin，替代方案：skywalking等。

• 分时任务调度框架 xxl-job

• admin 监控

---

2.工程搭建

2.1 搭建父工程

• mystyle-cloud-parent

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.zhangmeng</groupId>
    <artifactId>mystyle-cloud-parent</artifactId>
    <version>1.0-SNAPSHOT</version>

     <properties>
            <java.version>1.8</java.version>
            <spring-boot.version>2.4.4</spring-boot.version>
            <spring-cloud.version>2020.0.2</spring-cloud.version>
            <spring-cloud-alibaba.version>2020.0.RC1</spring-cloud-alibaba.version>
     </properties>


     <dependencyManagement>
            <dependencies>
                <!-- spring boot 依赖 -->
                <dependency>
                    <groupId>org.springframework.boot</groupId>
                    <artifactId>spring-boot-dependencies</artifactId>
                    <version>${spring-boot.version}</version>
                    <type>pom</type>
                    <scope>import</scope>
                </dependency>
                <!-- spring cloud 依赖 -->
                <dependency>
                    <groupId>org.springframework.cloud</groupId>
                    <artifactId>spring-cloud-dependencies</artifactId>
                    <version>${spring-cloud.version}</version>
                    <type>pom</type>
                    <scope>import</scope>
                </dependency>
                <!-- spring cloud alibaba 依赖 -->
                <dependency>
                    <groupId>com.alibaba.cloud</groupId>
                    <artifactId>spring-cloud-alibaba-dependencies</artifactId>
                    <version>${spring-cloud-alibaba.version}</version>
                    <type>pom</type>
                    <scope>import</scope>
                </dependency>
            </dependencies>
     </dependencyManagement>
</project>

2.2 搭建用户中心(废除)

• mystyle-cloud-user

包结构 ： com.zhangmeng.user

mystyle-cloud-user

<dependencies>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>

    </dependencies>

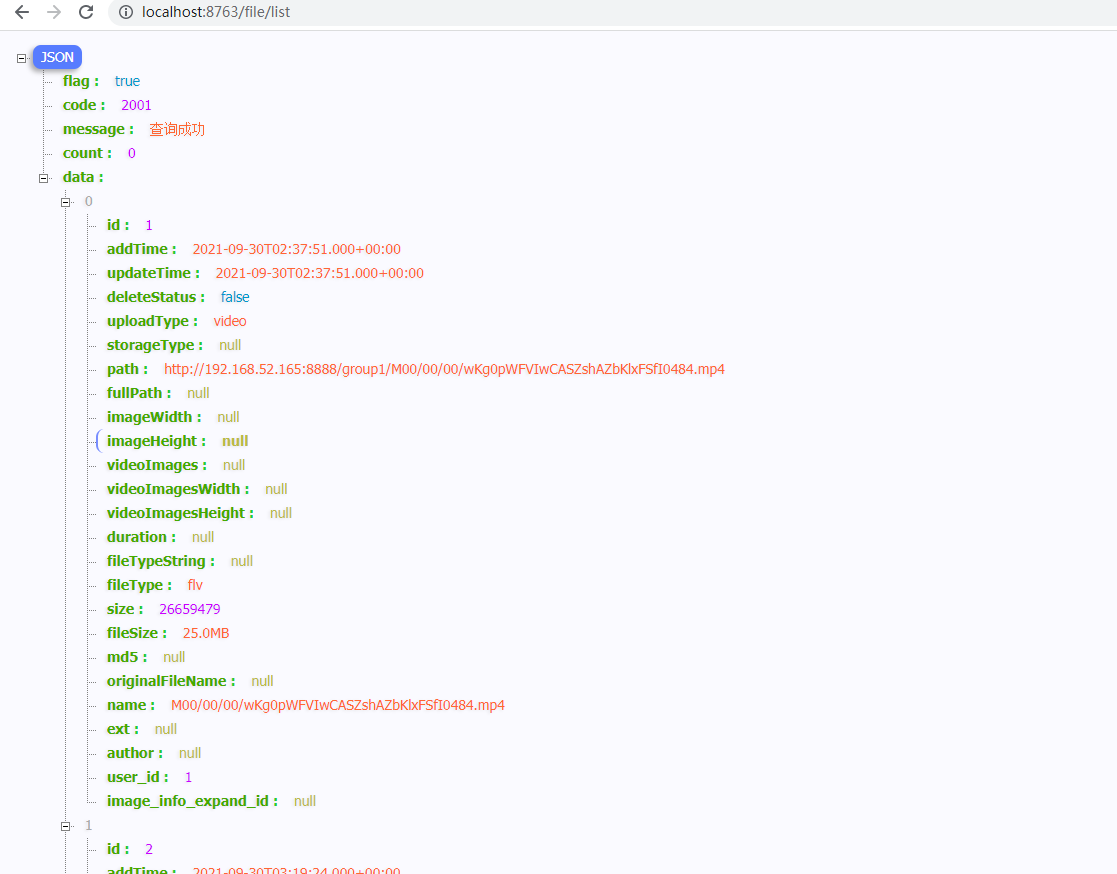

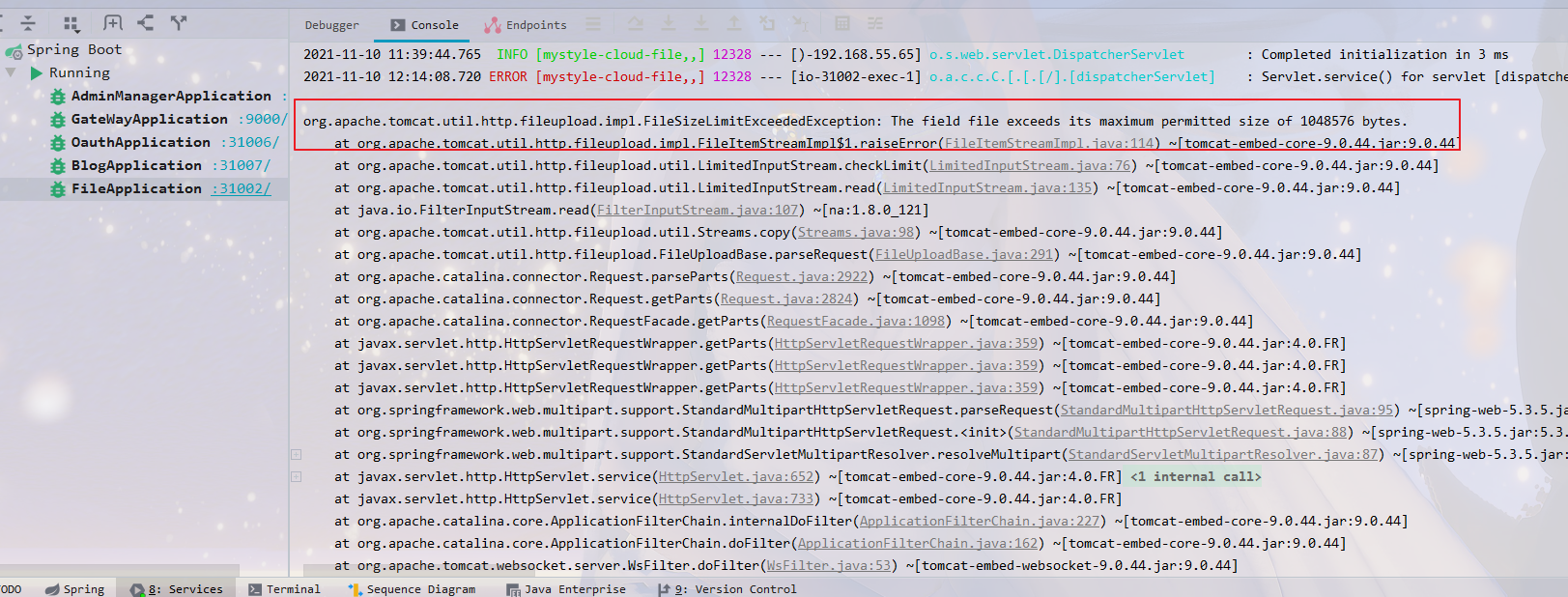

2.3 搭建文件中心

• mystyle-cloud-file

包结构 ：com.zhangmeng.file

file调用user

---

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-loadbalancer</artifactId>
        </dependency>
    </dependencies>

2.4 搭建网关

• mystyle-cloud-gateway

包结构 ：com.zhangmeng.gateway

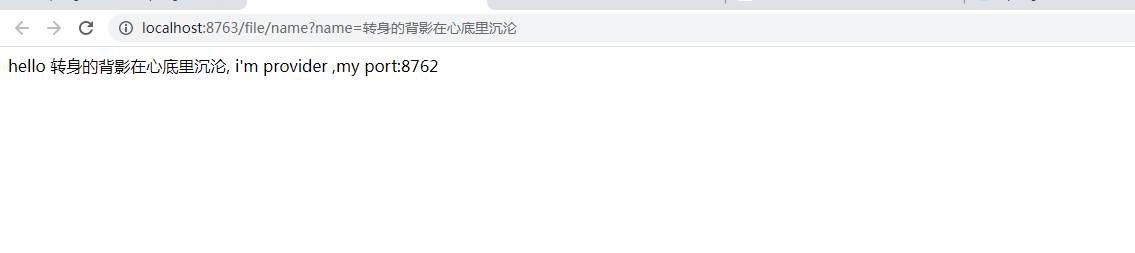

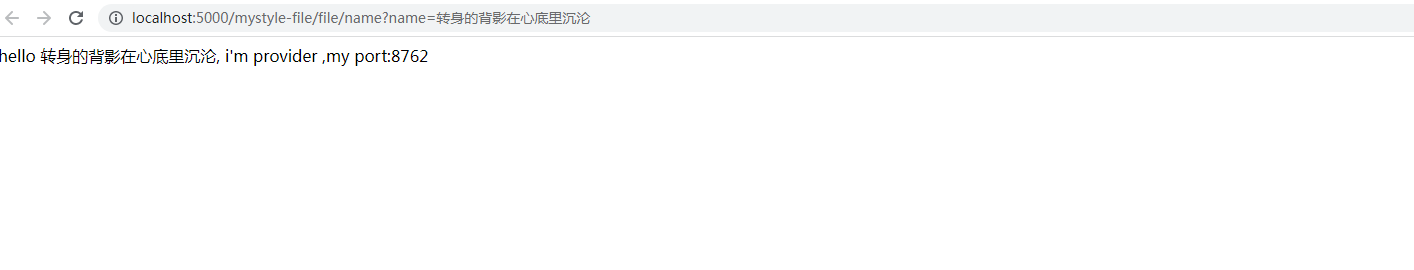

测试

---

    <dependencies>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-gateway</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-webflux</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-loadbalancer</artifactId>
        </dependency>

        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-sentinel</artifactId>
        </dependency>

        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-alibaba-sentinel-gateway</artifactId>
        </dependency>

    </dependencies>

• 创建一个网关分组和网关的限流规则

@Configuration
public class GatewayConfiguration {

    private final List<ViewResolver> viewResolvers;
    private final ServerCodecConfigurer serverCodecConfigurer;

    public GatewayConfiguration(ObjectProvider<List<ViewResolver>> viewResolversProvider,
                                ServerCodecConfigurer serverCodecConfigurer) {
        this.viewResolvers = viewResolversProvider.getIfAvailable(Collections::emptyList);
        this.serverCodecConfigurer = serverCodecConfigurer;
    }

    @Bean
    @Order(Ordered.HIGHEST_PRECEDENCE)
    public SentinelGatewayBlockExceptionHandler sentinelGatewayBlockExceptionHandler() {
        // Register the block exception handler for Spring Cloud Gateway.
        return new SentinelGatewayBlockExceptionHandler(viewResolvers, serverCodecConfigurer);
    }

    @Bean
    @Order(-1)
    public GlobalFilter sentinelGatewayFilter() {
        return new SentinelGatewayFilter();
    }

    @PostConstruct
    public void doInit() {
        initCustomizedApis();
        initGatewayRules();
    }

    private void initCustomizedApis() {
        Set<ApiDefinition> definitions = new HashSet<>();
        ApiDefinition api1 = new ApiDefinition("consumer")
                .setPredicateItems(new HashSet<ApiPredicateItem>() );
        ApiDefinition api2 = new ApiDefinition("provider")
                .setPredicateItems(new HashSet<ApiPredicateItem>() );
        definitions.add(api1);
        definitions.add(api2);
        GatewayApiDefinitionManager.loadApiDefinitions(definitions);
    }

    private void initGatewayRules() {
        Set<GatewayFlowRule> rules = new HashSet<>();
        rules.add(new GatewayFlowRule("consumer")
                .setCount(10)
                .setIntervalSec(1)
        );
        rules.add(new GatewayFlowRule("consumer")
                .setCount(2)
                .setIntervalSec(2)
                .setBurst(2)
                .setParamItem(new GatewayParamFlowItem()
                        .setParseStrategy(SentinelGatewayConstants.PARAM_PARSE_STRATEGY_CLIENT_IP)
                )
        );
        rules.add(new GatewayFlowRule("provider")
                .setCount(10)
                .setIntervalSec(1)
                .setControlBehavior(RuleConstant.CONTROL_BEHAVIOR_RATE_LIMITER)
                .setMaxQueueingTimeoutMs(600)
                .setParamItem(new GatewayParamFlowItem()
                        .setParseStrategy(SentinelGatewayConstants.PARAM_PARSE_STRATEGY_HEADER)
                        .setFieldName("X-Sentinel-Flag")
                )
        );
        rules.add(new GatewayFlowRule("provider")
                .setCount(1)
                .setIntervalSec(1)
                .setParamItem(new GatewayParamFlowItem()
                        .setParseStrategy(SentinelGatewayConstants.PARAM_PARSE_STRATEGY_URL_PARAM)
                        .setFieldName("pa")
                )
        );
        rules.add(new GatewayFlowRule("provider")
                .setCount(2)
                .setIntervalSec(30)
                .setParamItem(new GatewayParamFlowItem()
                        .setParseStrategy(SentinelGatewayConstants.PARAM_PARSE_STRATEGY_URL_PARAM)
                        .setFieldName("type")
                        .setPattern("warn")
                        .setMatchStrategy(SentinelGatewayConstants.PARAM_MATCH_STRATEGY_CONTAINS)
                )
        );

        rules.add(new GatewayFlowRule("provider")
                .setResourceMode(SentinelGatewayConstants.RESOURCE_MODE_CUSTOM_API_NAME)
                .setCount(5)
                .setIntervalSec(1)
                .setParamItem(new GatewayParamFlowItem()
                        .setParseStrategy(SentinelGatewayConstants.PARAM_PARSE_STRATEGY_URL_PARAM)
                        .setFieldName("pn")
                )
        );
        GatewayRuleManager.loadRules(rules);
    }
}

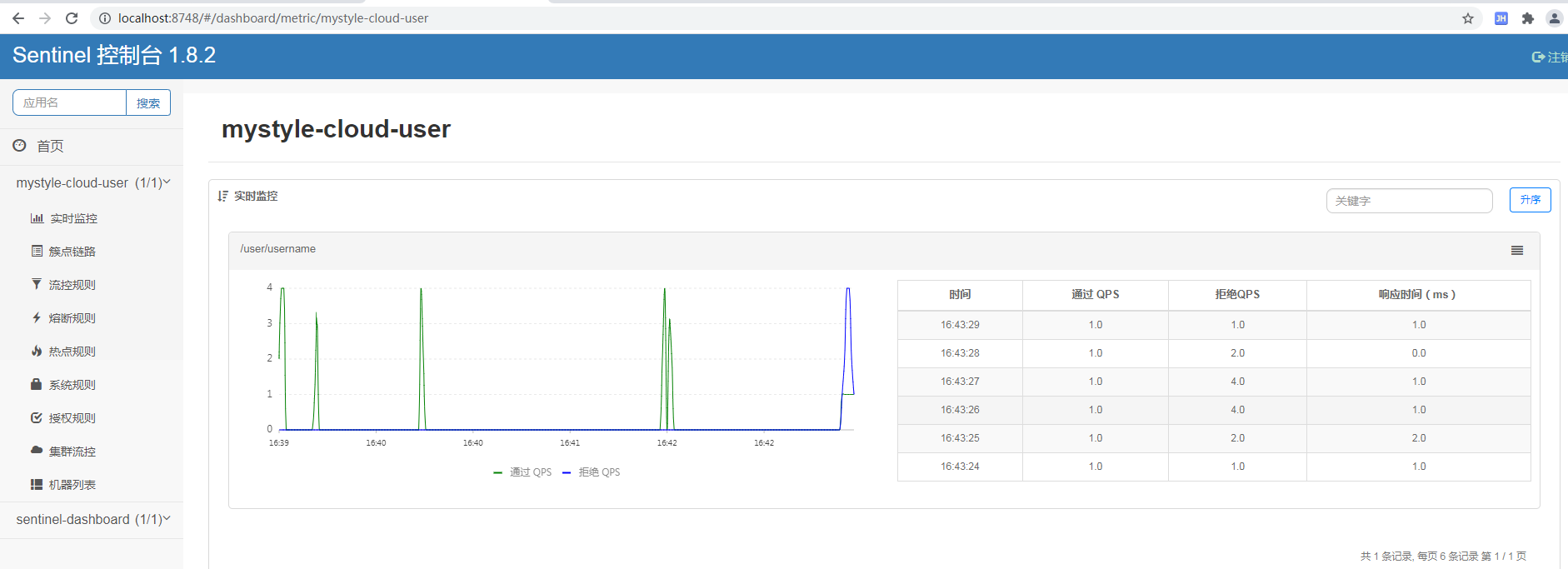

2.5 sentinel dashboard

sentinel dashboard

java -Dserver.port=8748 -Dcsp.sentinel.dashboard.server=localhost:8748 -Dproject.name=sentinel-dashboard -jar sentinel-dashboard-1.8.1.jar

添加流控规则 ：

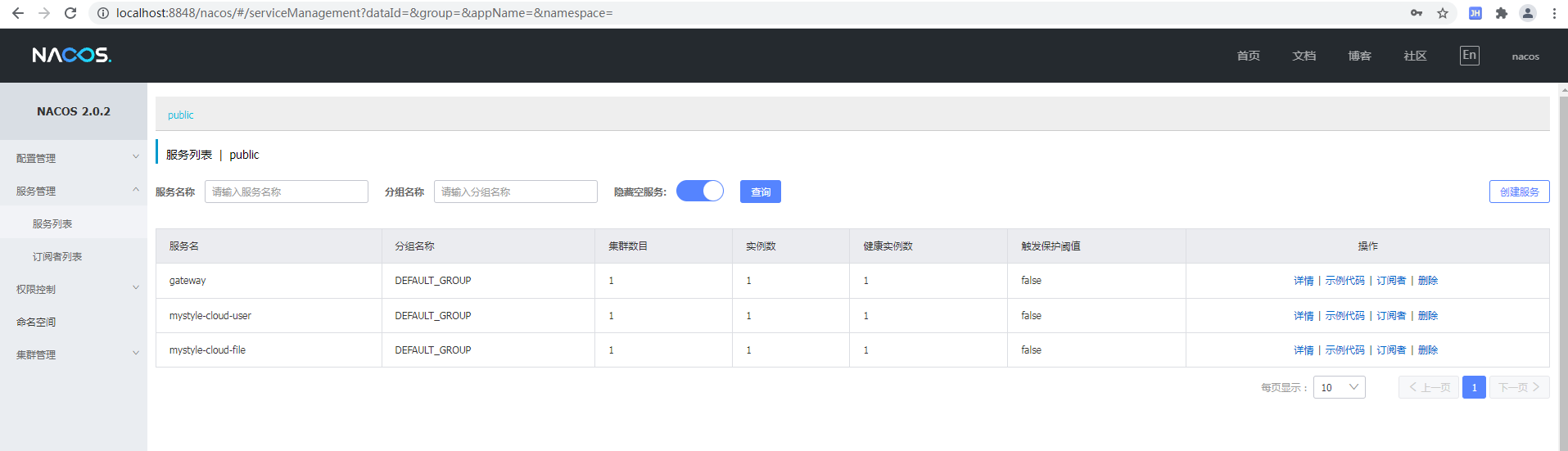

2.6 搭建注册中心

nacos

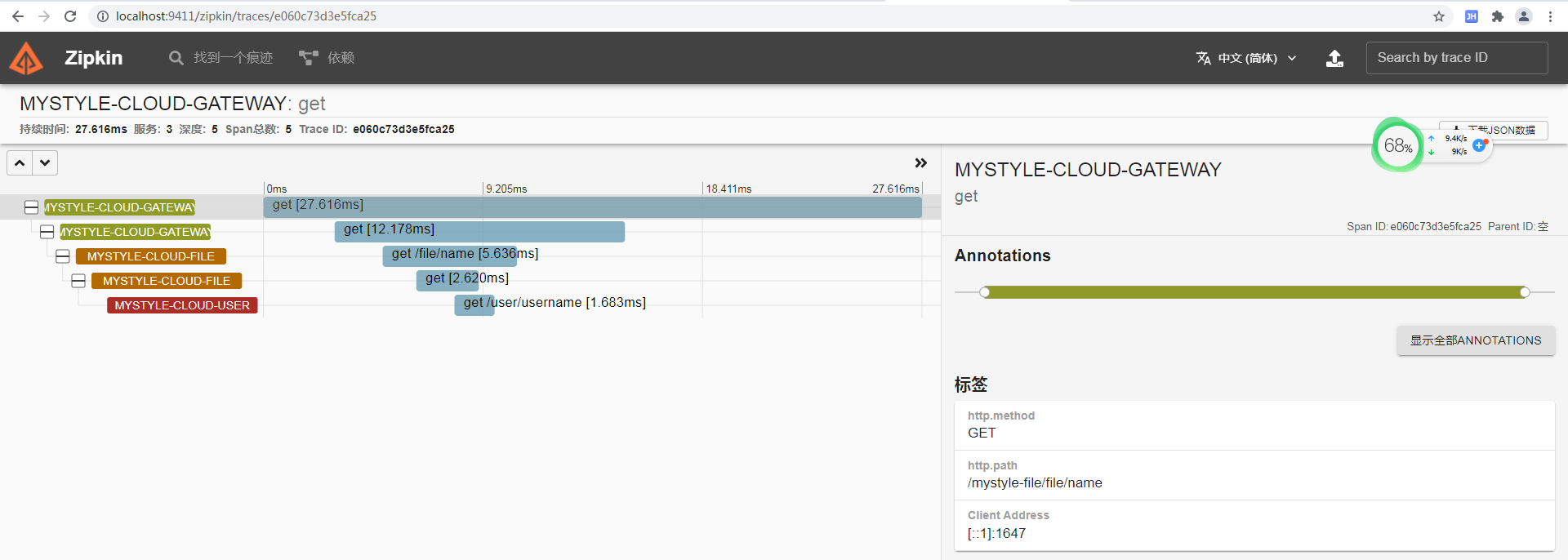

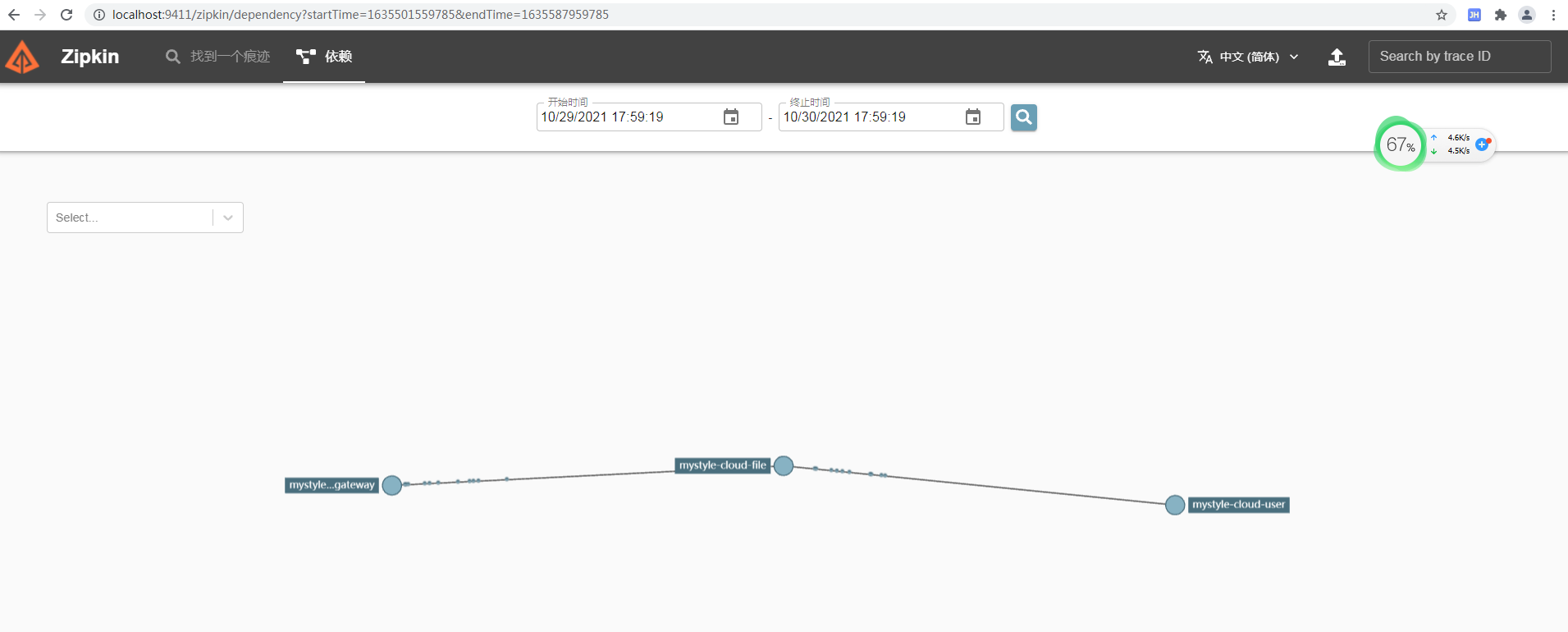

2.7 搭建 zipkin server

zipkin server

批处理 启动

@echo off

start /d  "E:\nacos-server-2.0.2\nacos\bin\" startup.cmd

start cmd /c "title sentinel-dashboard && java -jar E:\nacos-server-2.0.2\sentinel-dashboard-1.8.2.jar --server.port=8748 &"

start cmd /c "title zipkin-server-2.23.4-exec && java -jar E:\nacos-server-2.0.2\zipkin-server-2.23.4-exec.jar --server.port=9411 &"

pause

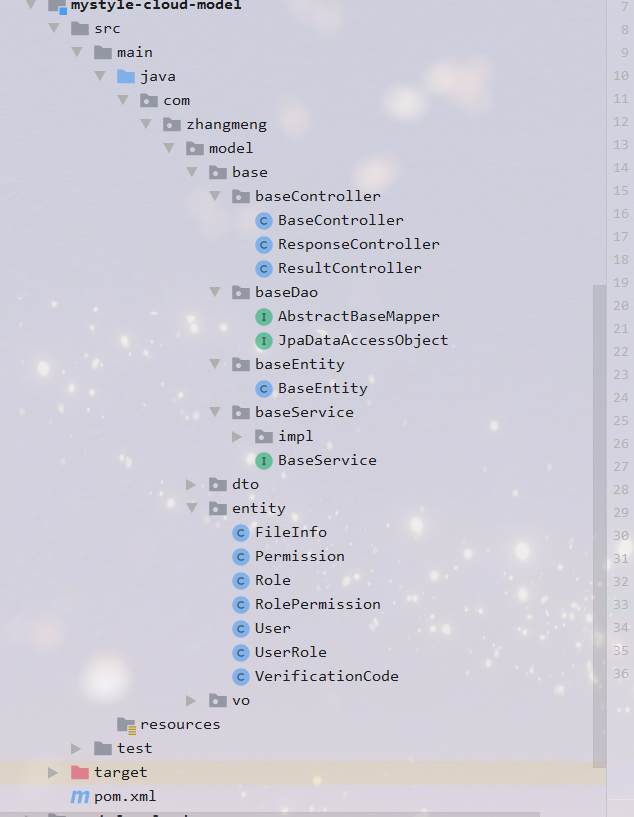

2.8 搭建 model

• mystyle-cloud-model

包结构 ：com.zhangmeng.model

集成 jpa 及 通用 mapper

@SpringBootApplication
@EnableDiscoveryClient
@EnableFeignClients
@ComponentScan(basePackages = {"com.zhangmeng.model","com.zhangmeng.file"})
public class FileApplication {

    public static void main(String[] args) {
        SpringApplication.run(FileApplication.class,args);
    }
}

测试

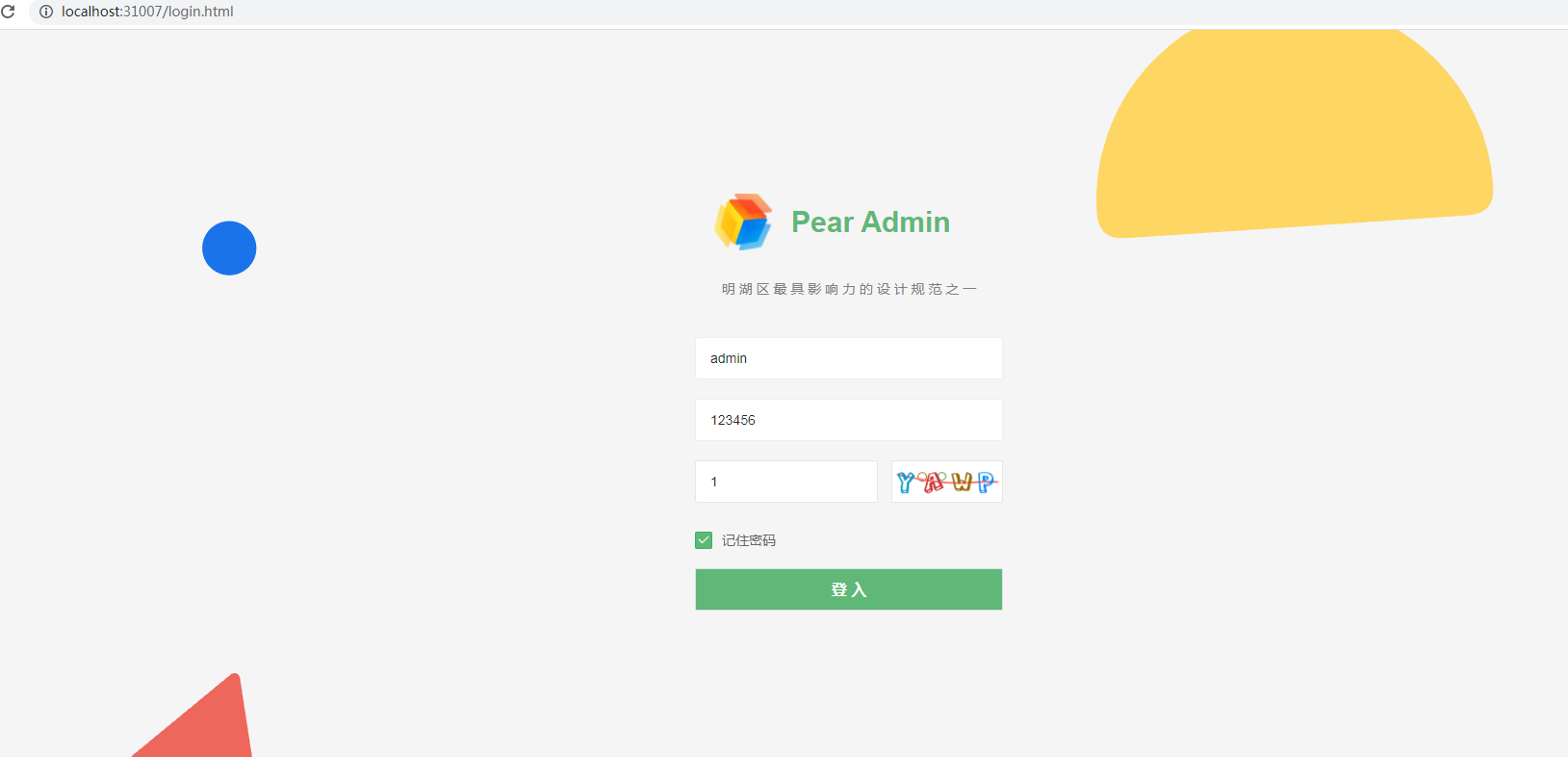

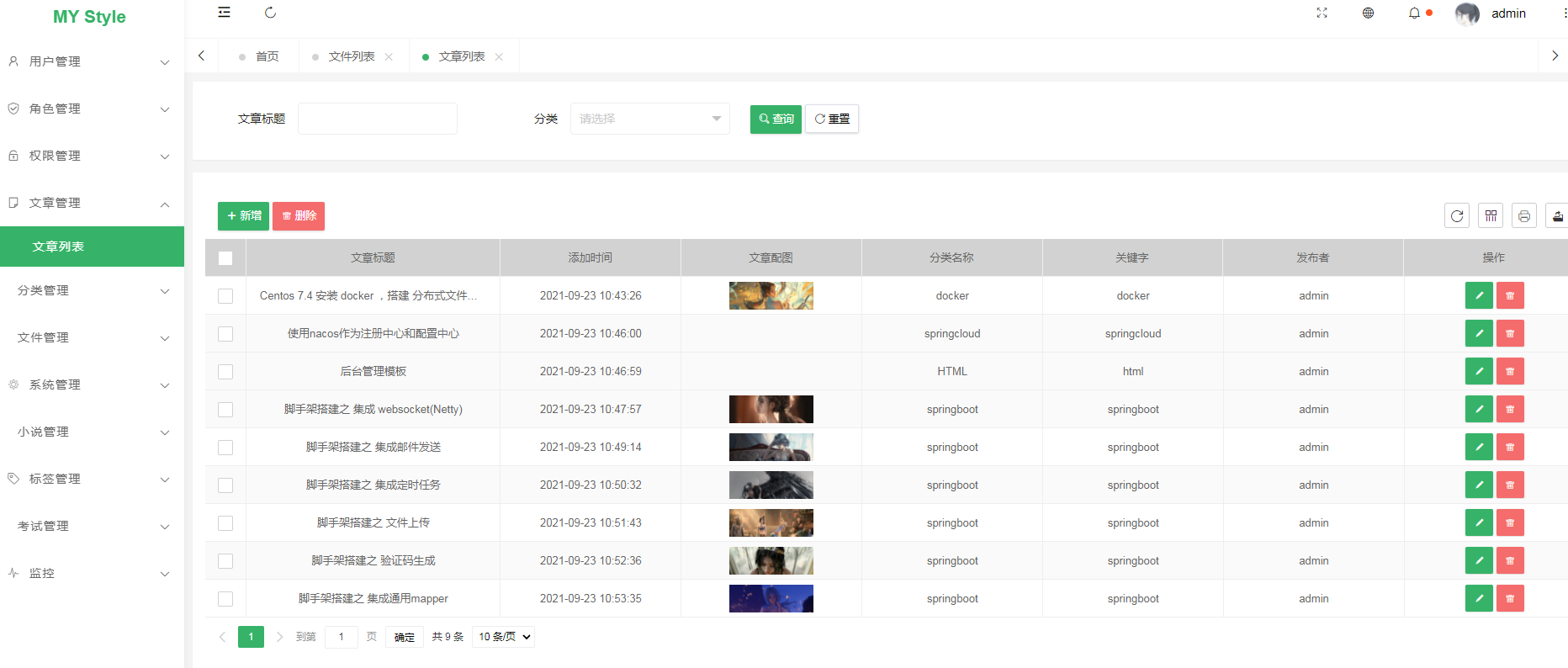

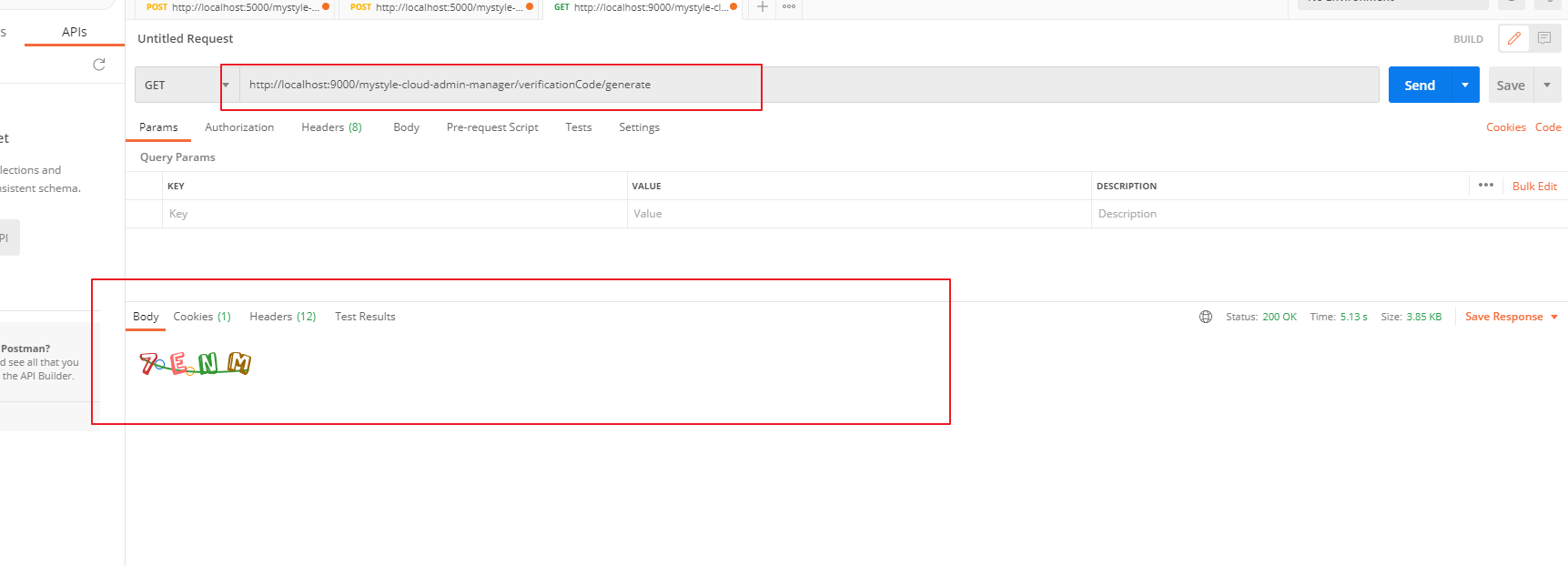

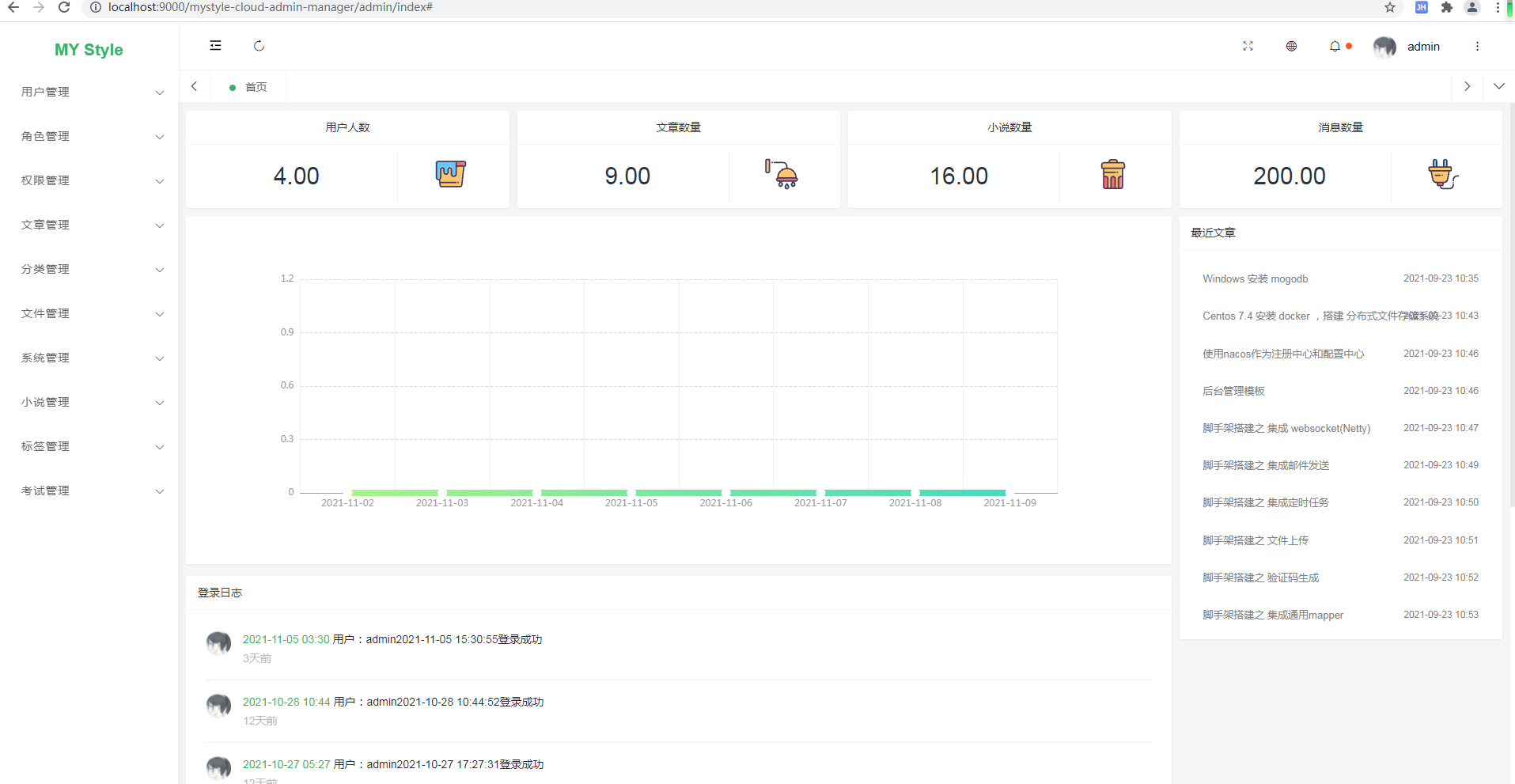

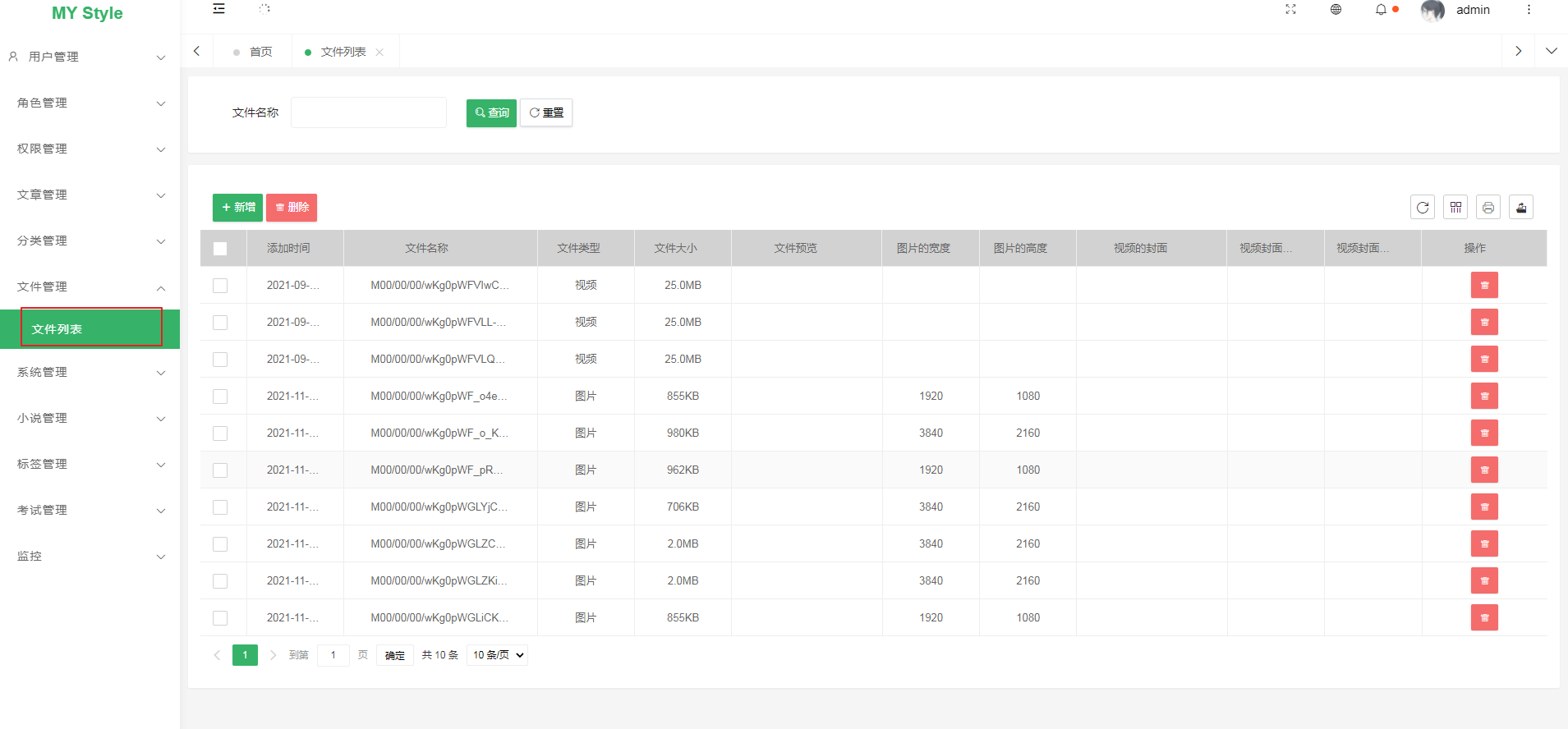

2.8 搭建 管理后台

• mystyle-cloud-admin-manager

包结构 ：com.zhangmeng.admin.manager

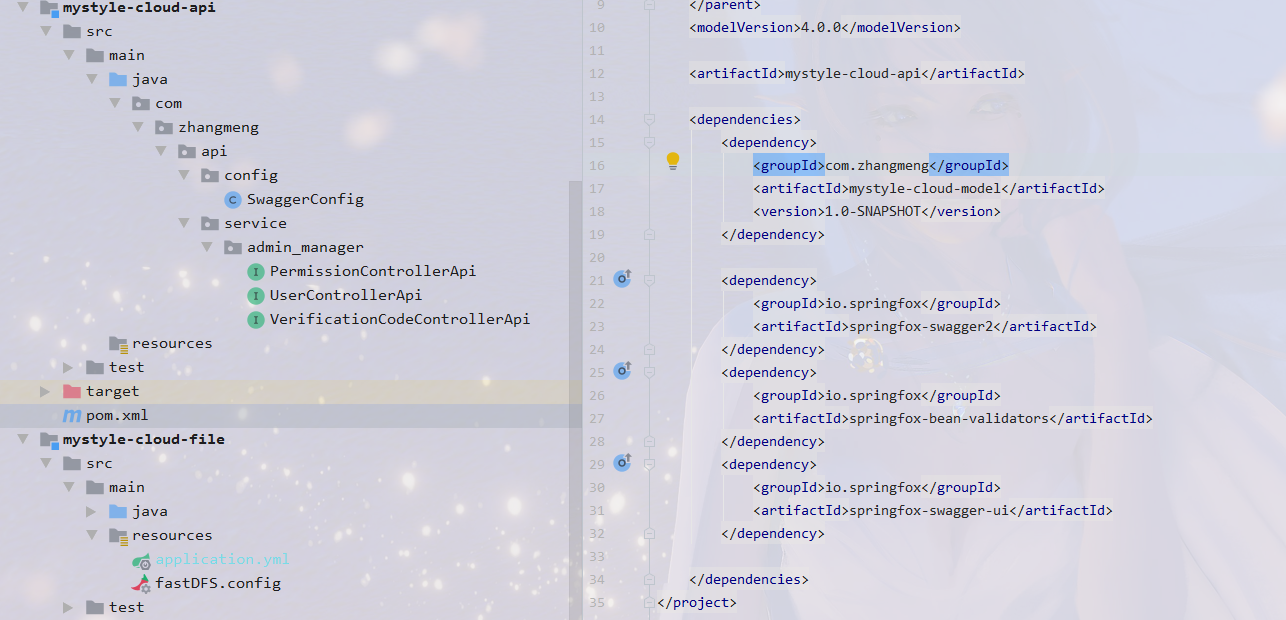

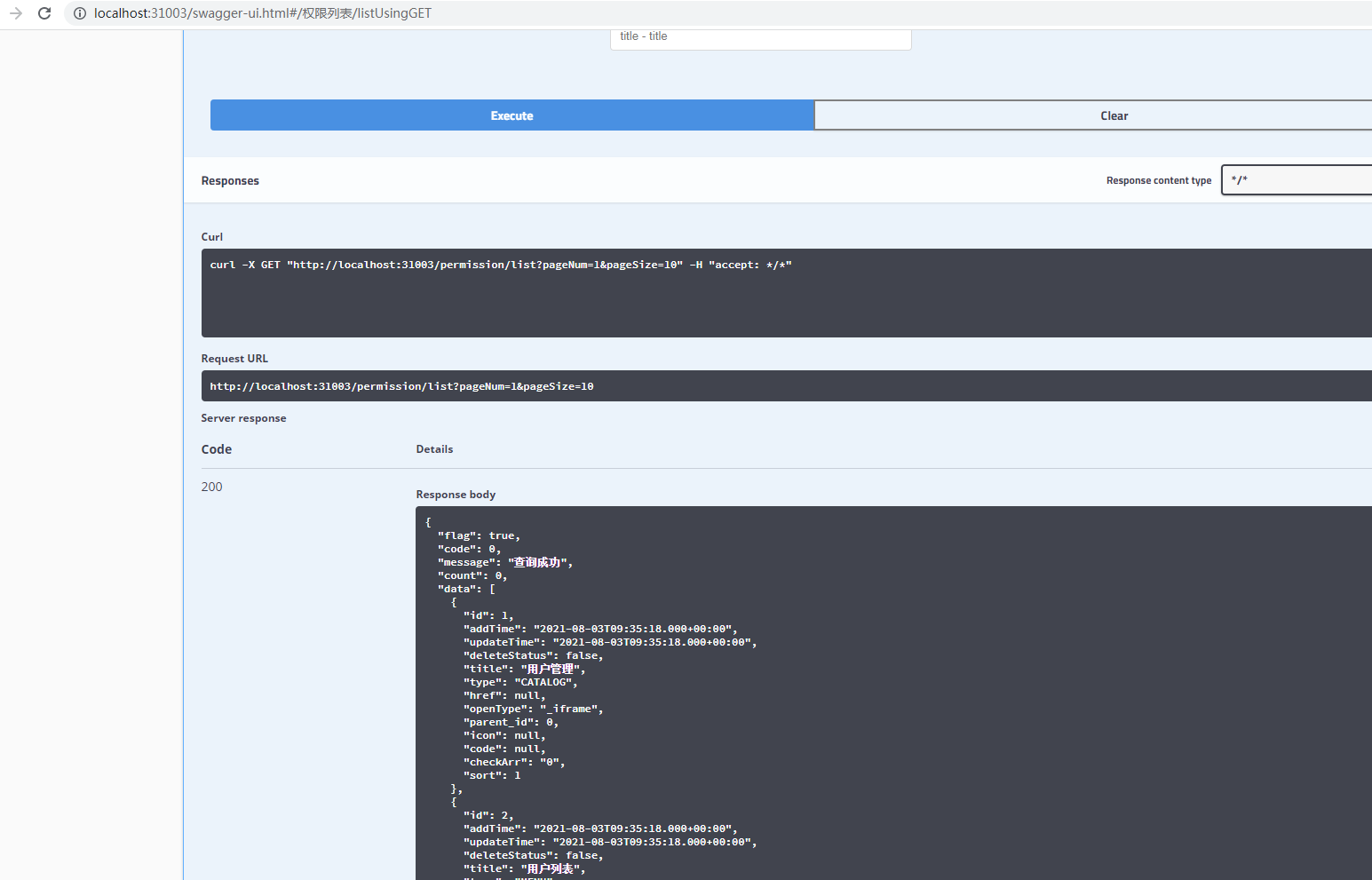

2.9 api 搭建 api

• mystyle-cloud-api

包结构 ：com.zhangmeng.api

package com.zhangmeng.api.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.*;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spi.service.contexts.SecurityContext;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

import java.util.ArrayList;
import java.util.List;

/**
 * @author zhangmeng
 * @version 1.0
 * @date 2021年7月8日09:12:01
 */
@EnableSwagger2
@Configuration
public class SwaggerConfig {

    @Bean
    public Docket docket() {
        return new Docket(DocumentationType.SWAGGER_2).groupName("swagger接口文档")
                .apiInfo(new ApiInfoBuilder().title("swagger接口文档")
                        .contact(new Contact("转身的背影在心底里沉沦", "", "1334717033.com")).version("1.0").build())
                .securitySchemes(securitySchemes())
                .securityContexts(securityContexts())
                .select()
                .apis(RequestHandlerSelectors.basePackage("com.zhangmeng"))
                .paths(PathSelectors.any()).build();
    }

    private List<ApiKey> securitySchemes() {
        List<ApiKey> apiKeyList= new ArrayList<>();
        apiKeyList.add(new ApiKey("token", "token", "header"));
        return apiKeyList;
    }

    private List<SecurityContext> securityContexts() {
        List<SecurityContext> securityContexts=new ArrayList<>();
        securityContexts.add(
                SecurityContext.builder()
                        .securityReferences(defaultAuth())
                        .forPaths(PathSelectors.regex("^(?!auth).*$"))
                        .build());
        return securityContexts;
    }

    private List<SecurityReference> defaultAuth() {
        AuthorizationScope authorizationScope = new AuthorizationScope("global", "accessEverything");
        AuthorizationScope[] authorizationScopes = new AuthorizationScope[1];
        authorizationScopes[0] = authorizationScope;
        List<SecurityReference> securityReferences=new ArrayList<>();
        securityReferences.add(new SecurityReference("token", authorizationScopes));
        return securityReferences;
    }
}

admin_manager

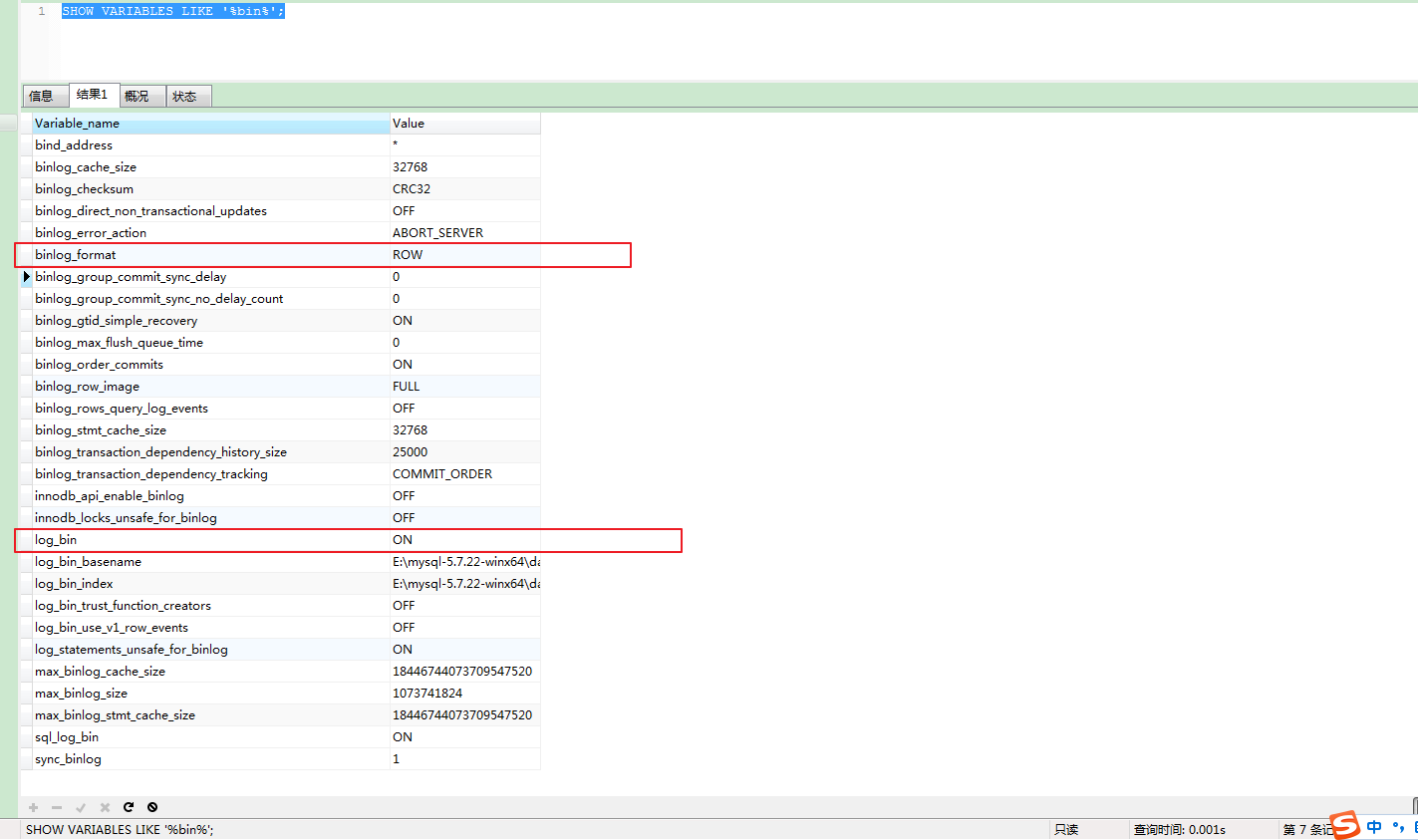

2.10 搭建 canal

• mystyle-cloud-canal

包结构 ：com.zhangmeng.canal

(2) 创建账号 用于测试使用,

使用root账号创建用户并授予权限

create user canal@'%' IDENTIFIED by 'canal';
GRANT SELECT, REPLICATION SLAVE, REPLICATION CLIENT,SUPER ON *.* TO 'canal'@'%';
FLUSH PRIVILEGES;

@SpringBootApplication(exclude={DataSourceAutoConfiguration.class})
@EnableEurekaClient
@EnableCanalClient
public class CanalApplication {

    public static void main(String[] args) {
        SpringApplication.run(CanalApplication.class,args);
    }
}

2.11 搭建 消息中间件 rabbit mq

• mystyle-cloud-mq

包结构 ：com.zhangmeng.mq

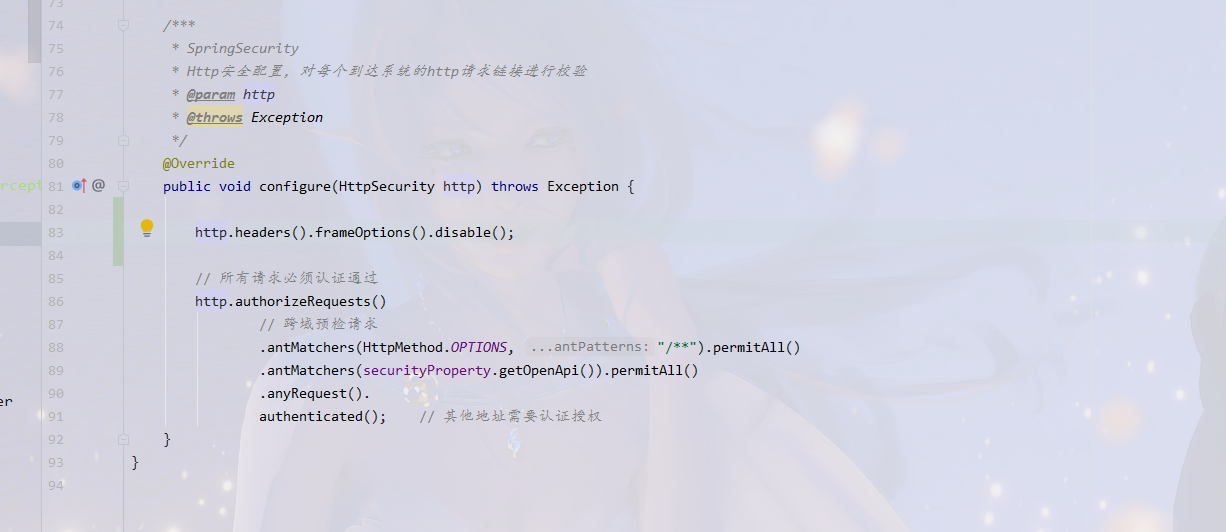

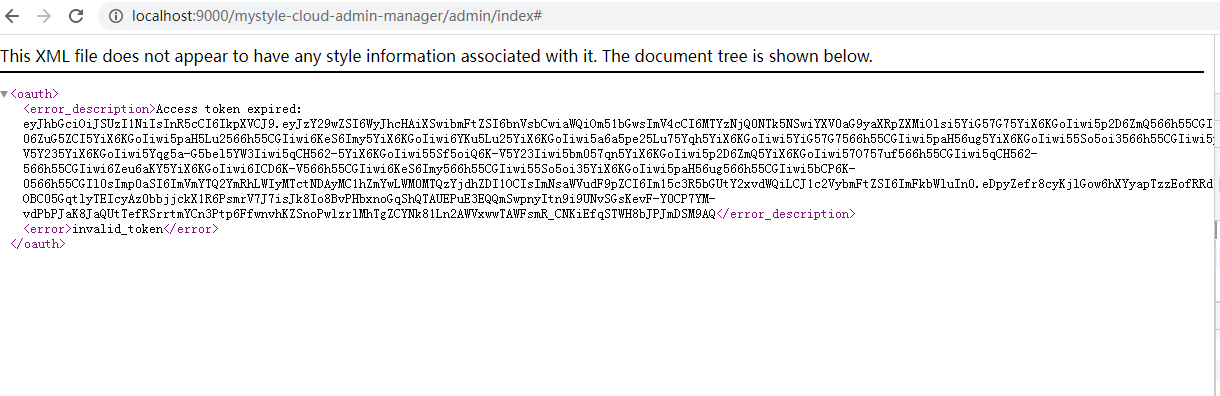

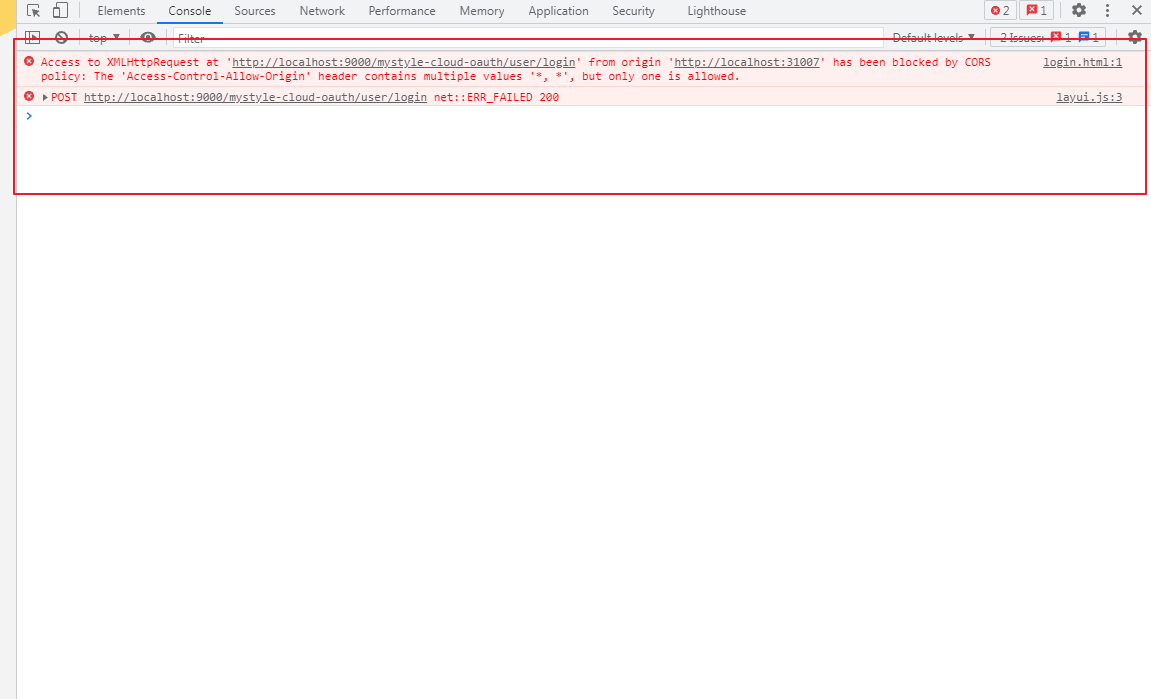

2.12 搭建 授权中心

• mystyle-cloud-oauth

包结构 ：com.zhangmeng.oauth

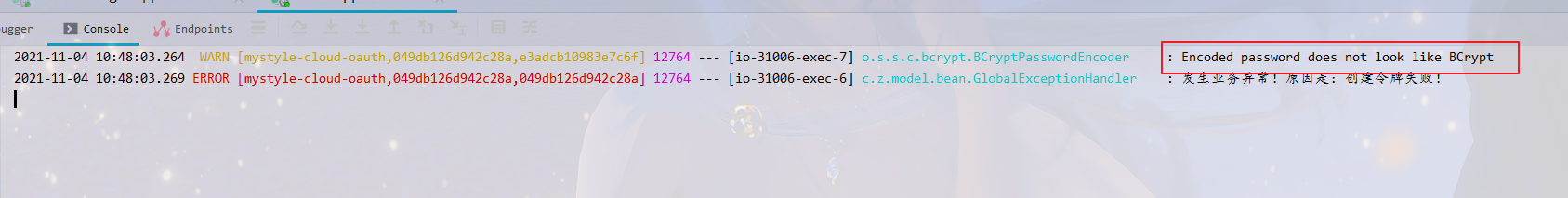

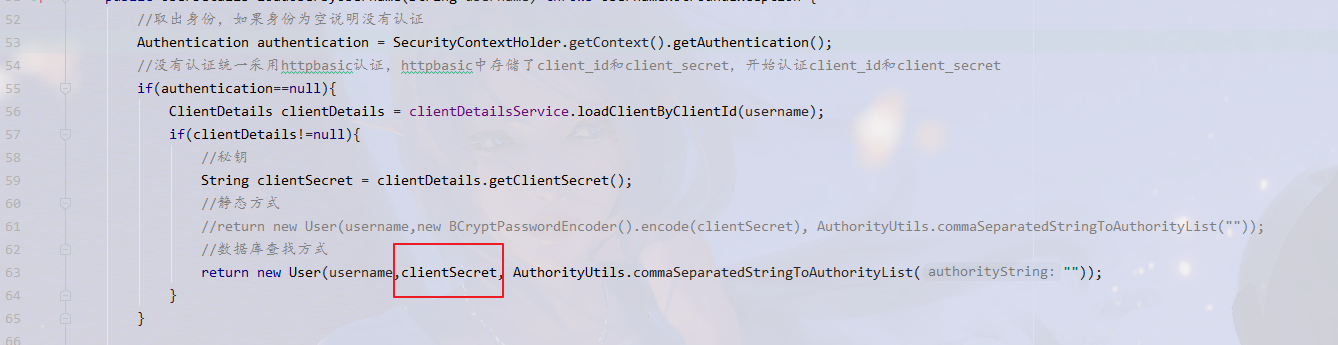

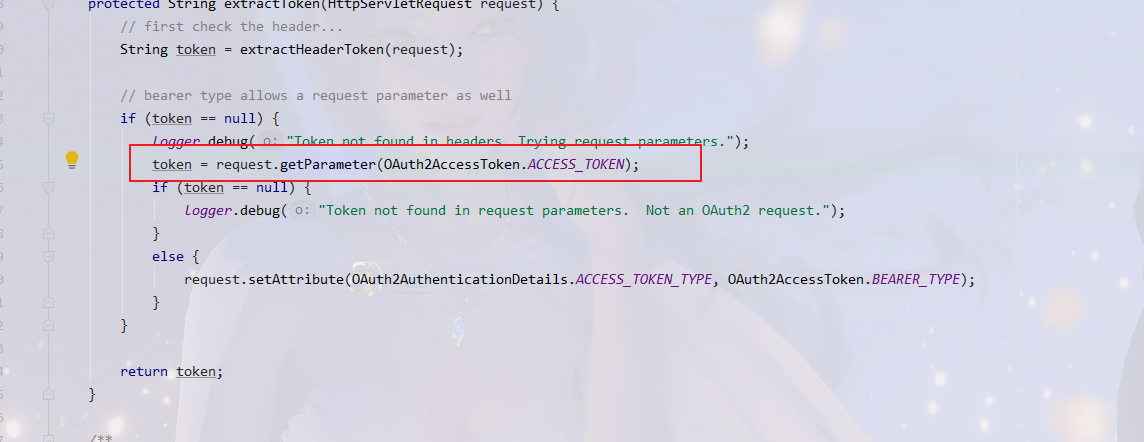

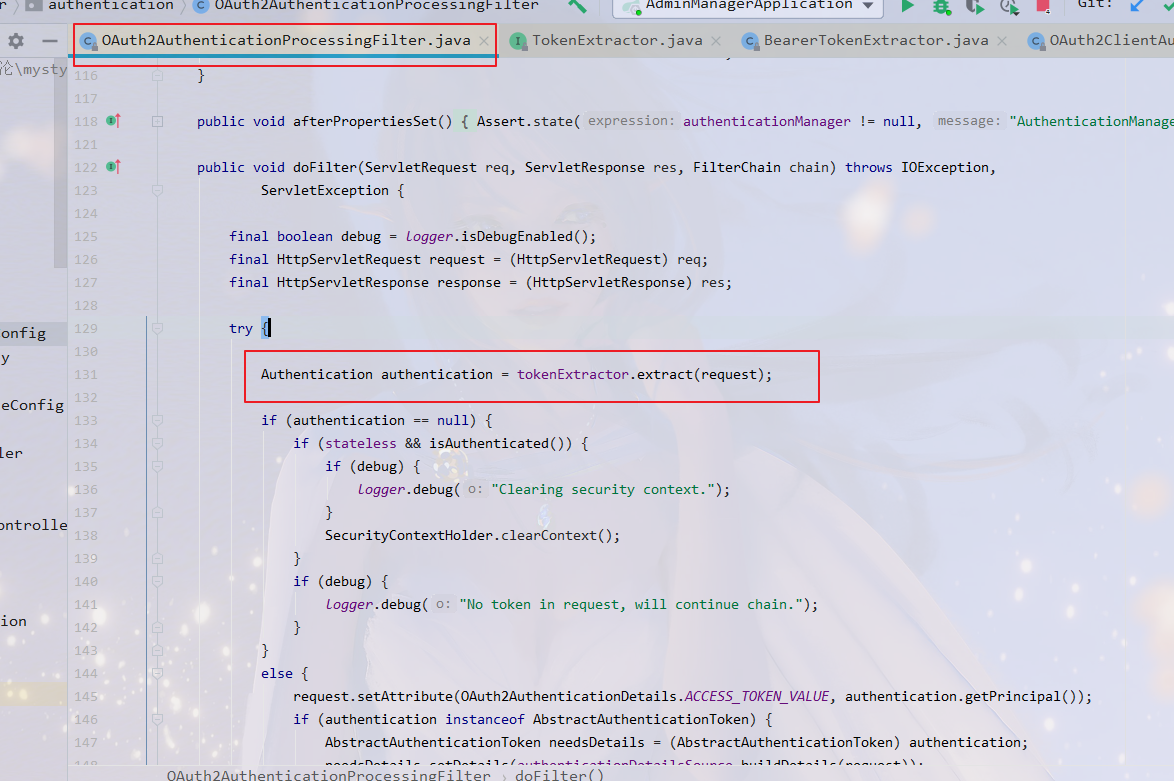

• Encoded password does not look like BCrypt

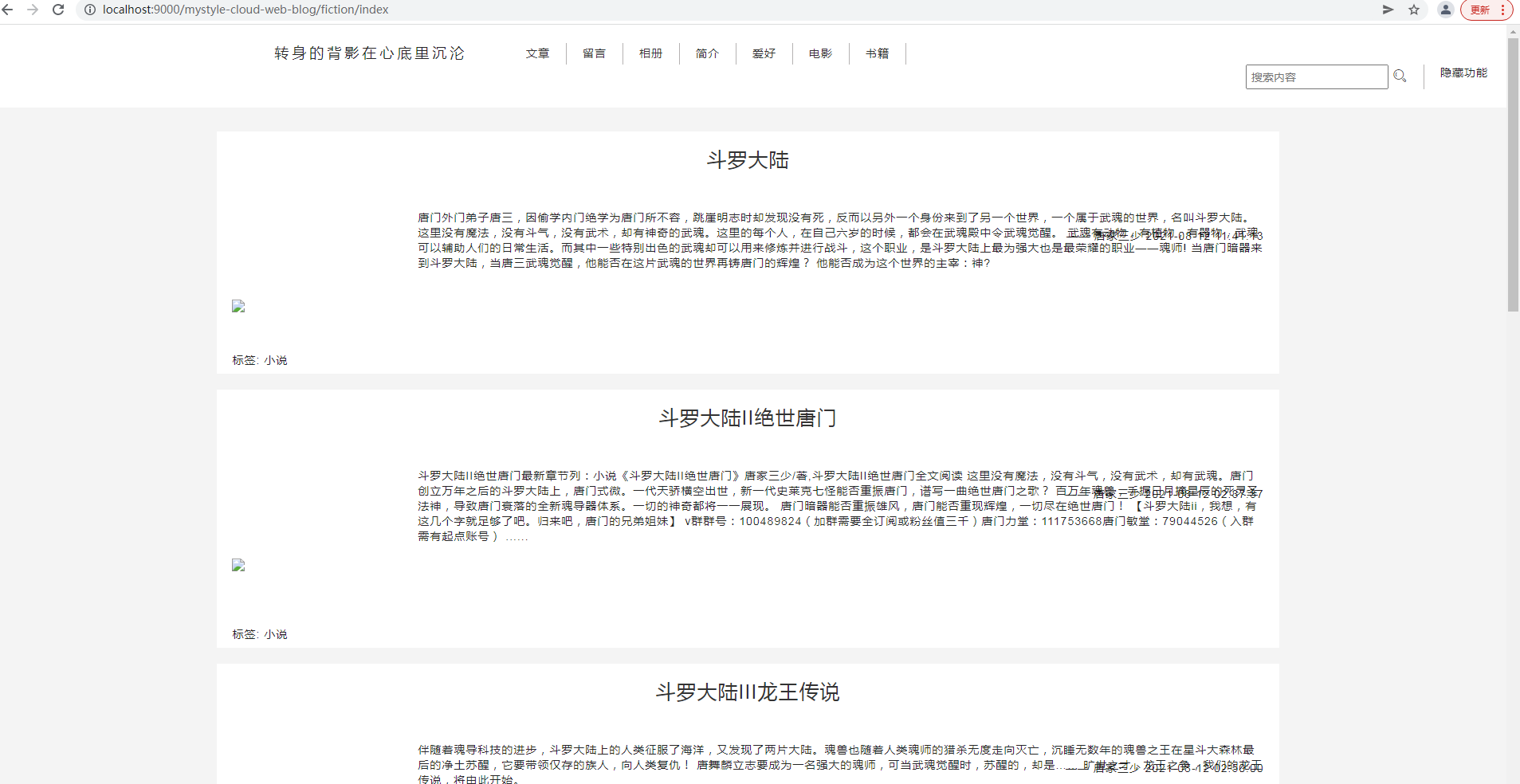

2.13 搭建博客

• mystyle-cloud-blog

  包结构 ：com.zhangmeng.blog

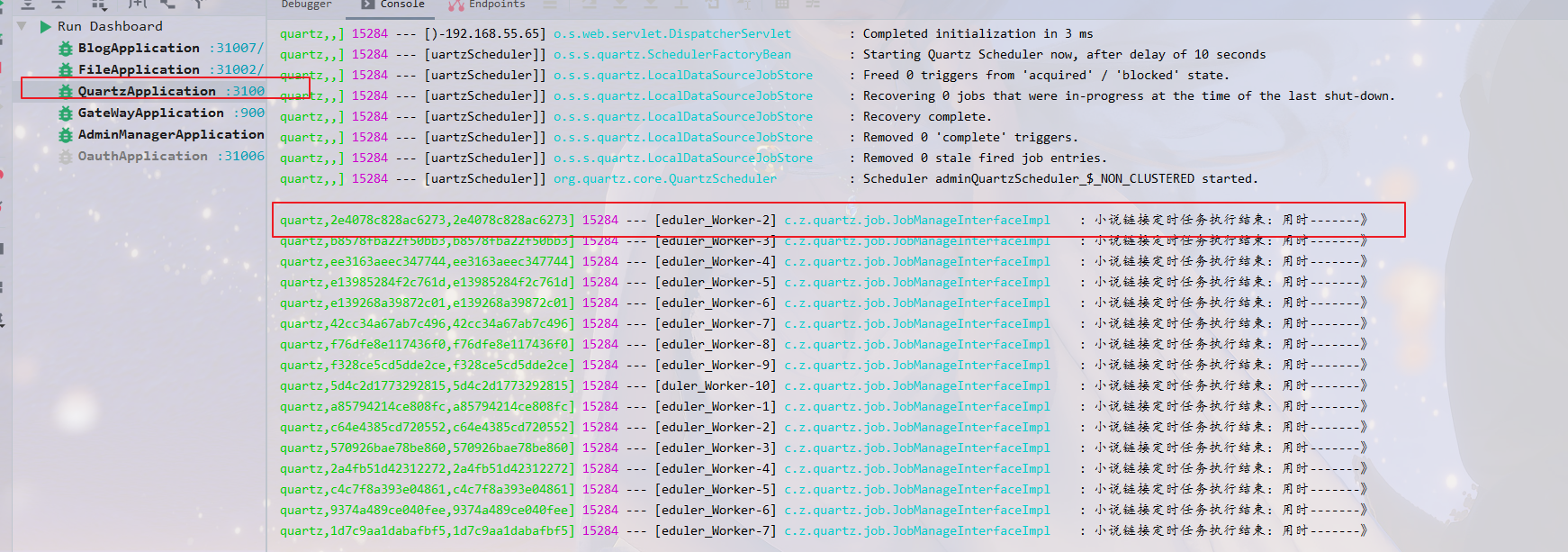

2.14 搭建定时任务

思路 ：

• quartz + rabbit_mq

• xxl-job 分布式调度框架

• mystyle-cloud-quartz

  com.zhangmeng.quartz

后续调整为：

• mystyle-cloud-xxl-job

  com.zhangmeng.job

引入依赖

<dependency>
    <groupId>com.xuxueli</groupId>
    <artifactId>xxl-job-core</artifactId>
    <version>2.2.0</version>
</dependency>

2.15 搭建邮件

• mystyle-cloud-mail

  包结构 ：com.zhangmeng.mail

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-mail</artifactId>
</dependency>

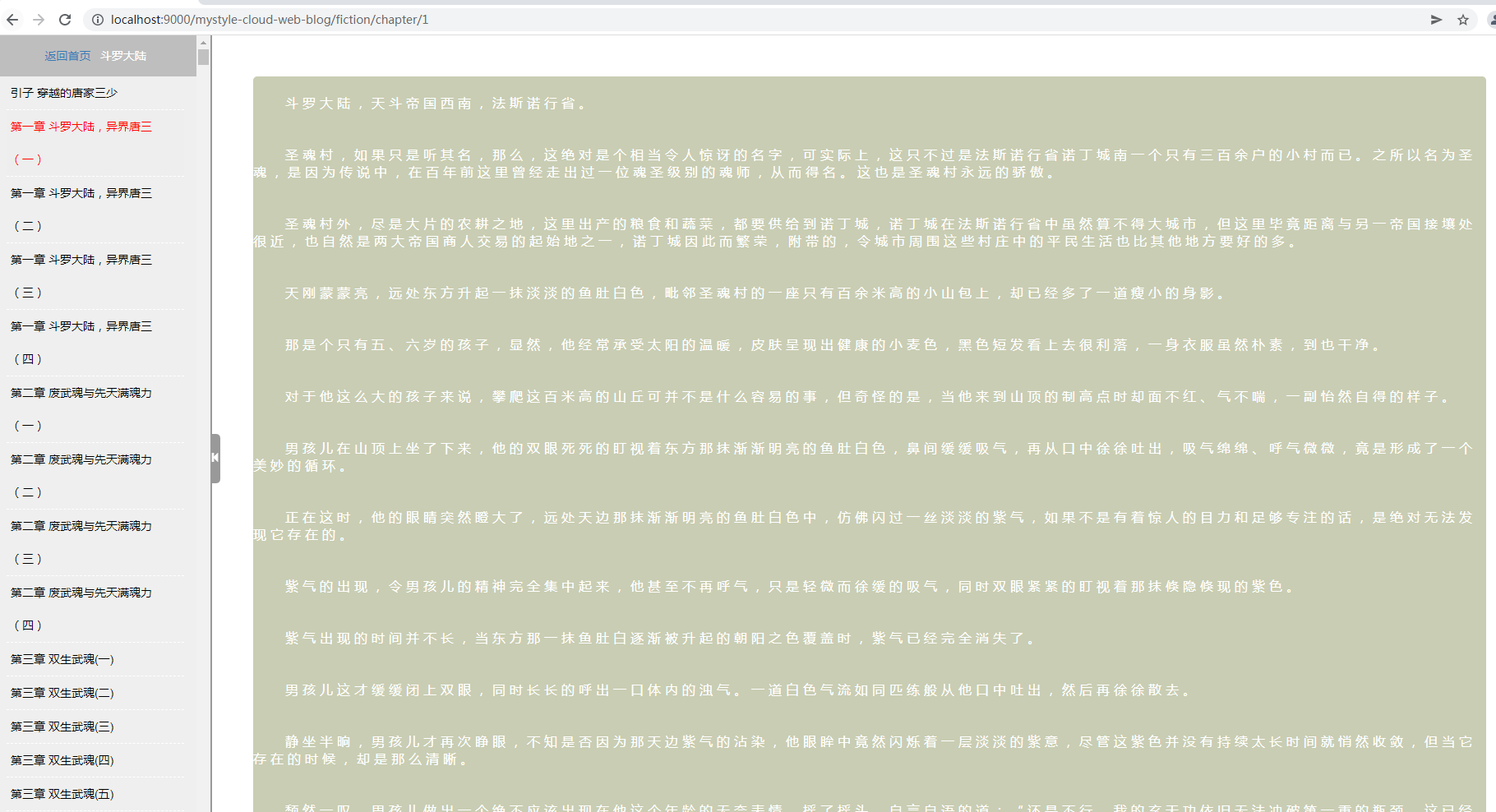

2.15 搭建小说

• mystyle-cloud-fiction

  包结构 ：com.zhangmeng.fiction

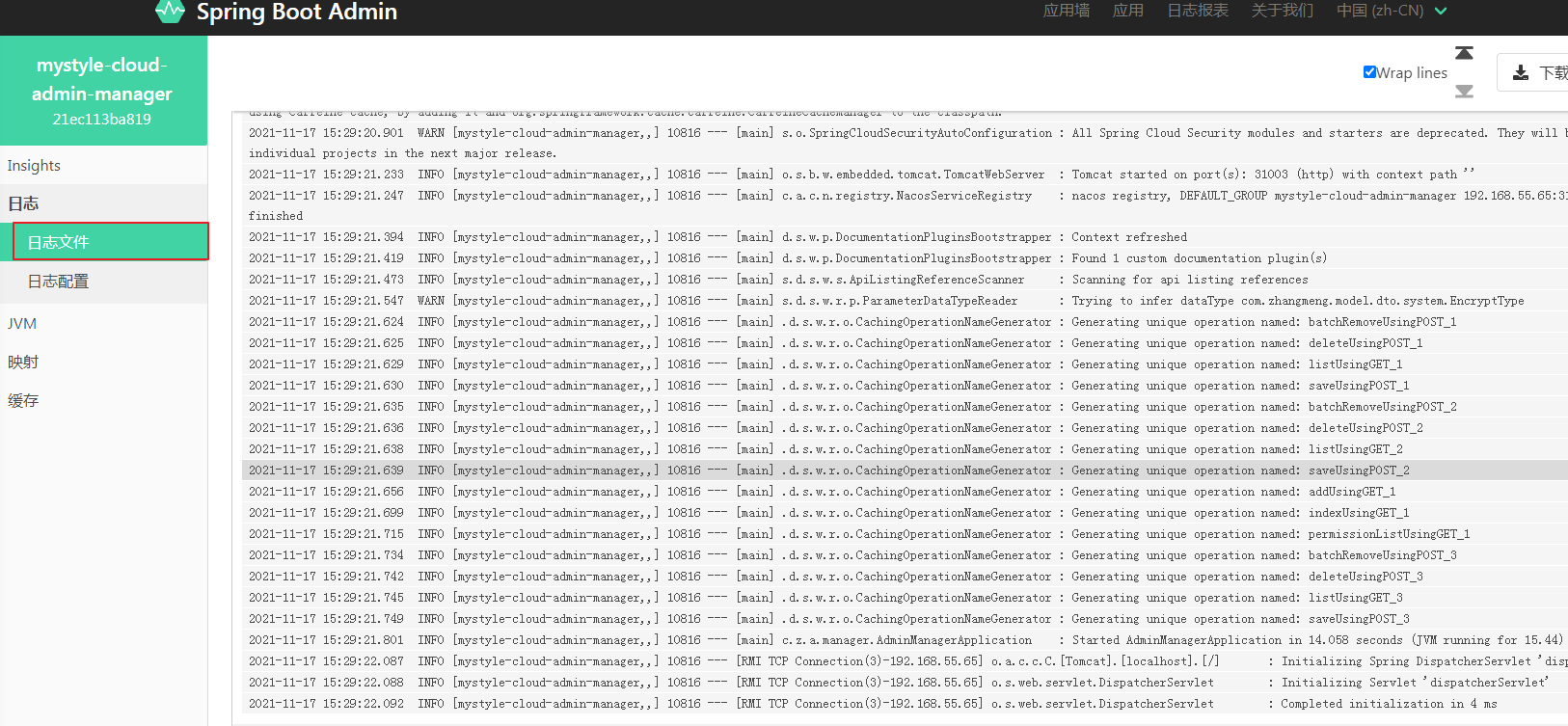

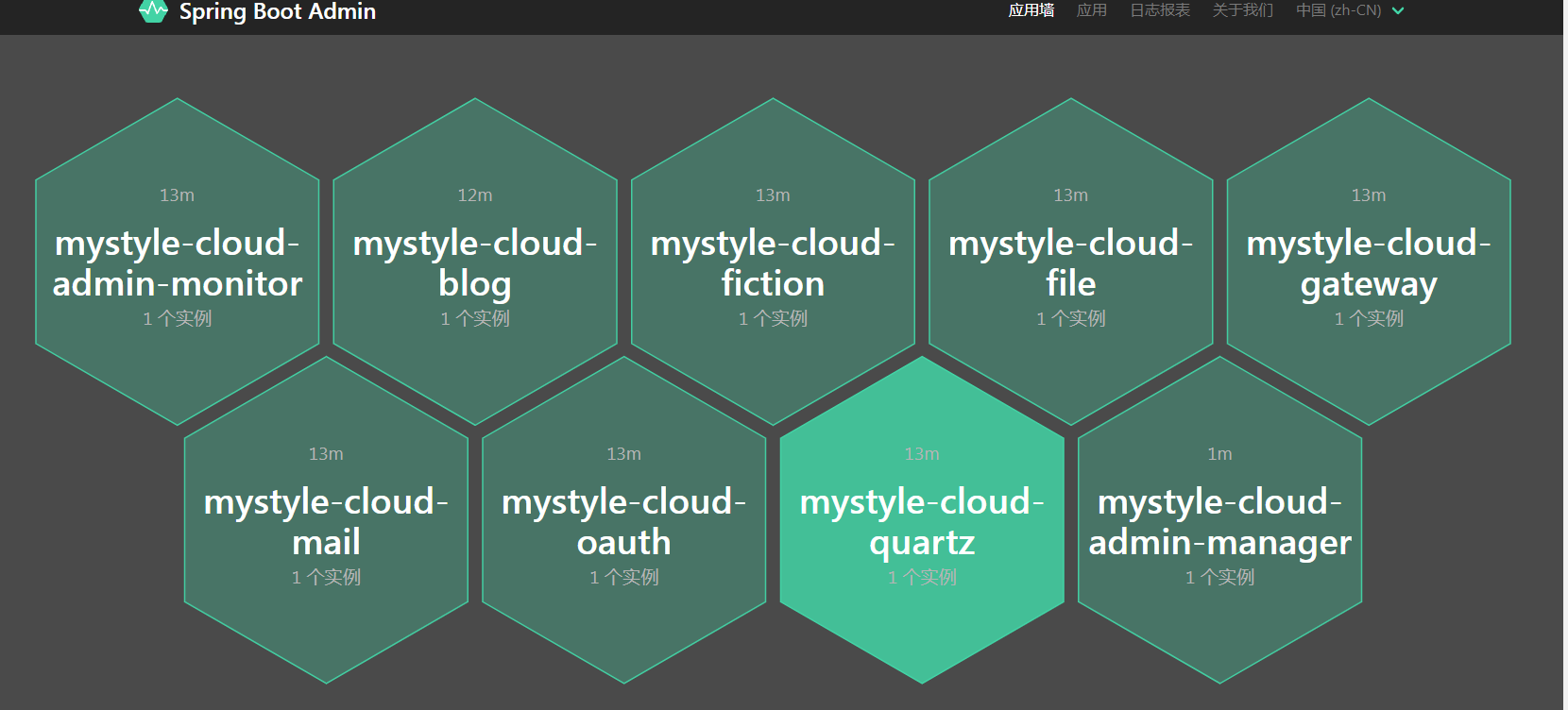

2.16 搭建admin 监控

• mystyle-cloud-admin-monitor

  包结构 ：com.zhangmeng.monitor

management:
  endpoints:
    web:
      exposure:
        include: '*'
  endpoint:
    health:
      show-details: ALWAYS
      enabled: true

<dependency>
    <groupId>de.codecentric</groupId>
    <artifactId>spring-boot-admin-starter-client</artifactId>
</dependency>

      - /actuator/**
      - /instances/**

3.接口说明

3.1 登录接口

3.1.1 验证码

验证码

3.1.2 查询当前用户

地址

3.1.3 登录

• 问题 跨域

地址

• 解决办法

gate_way yml 配置

server:
  port: 9000
spring:
  application:
    name: mystyle-cloud-gateway
  zipkin:
    sender:
      type: web
    base-url: http://localhost:9411/
    service:
      name: mystyle-cloud-gateway
  sleuth:
    sampler:
      probability: 1
  cloud:
    sentinel:
      transport:
        port: 15000
        dashboard: localhost:8748
    nacos:
      discovery:
        server-addr: 127.0.0.1:8848
    gateway:
      globalcors:
        corsConfigurations:
          '[/**]': # 匹配所有请求
            allowedOrigins: "*" #跨域处理 允许所有的域
            allowedMethods: # 支持的方法
              - GET
              - POST
              - PUT
              - DELETE
            allowedOriginPatterns: "*"
      discovery:
        locator:
          enabled: false
          lowerCaseServiceId: true
      routes:
        - id: mystyle-cloud-oauth
          uri: lb://mystyle-cloud-oauth
          predicates:
            - Path=/mystyle-cloud-oauth/**
          filters:
            - StripPrefix=1
        - id: mystyle-cloud-admin-manager
          uri: lb://mystyle-cloud-admin-manager
          predicates:
            - Path=/mystyle-cloud-admin-manager/**
          filters:
            - StripPrefix=1

或者


package com.zhangmeng.gateway.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.cors.CorsConfiguration;
import org.springframework.web.cors.reactive.CorsWebFilter;
import org.springframework.web.cors.reactive.UrlBasedCorsConfigurationSource;


/**
 * @author zhangmeng
 * @date 2021年11月8日15:52:27
 * @version 1.0
 */
@Configuration
public class CorsConfig {

    @Bean
    public CorsWebFilter corsWebFilter(){
        UrlBasedCorsConfigurationSource source = new UrlBasedCorsConfigurationSource();

        CorsConfiguration corsConfiguration = new CorsConfiguration();
        //1、配置跨域
        //允许哪些头进行跨域
        corsConfiguration.addAllowedHeader("*");
        //允许哪些请求方式进行跨域
        corsConfiguration.addAllowedMethod("*");
        //允许哪些请求来源进行跨域
        corsConfiguration.addAllowedOriginPattern("*");
        //是否允许携带cookie进行跨域，否则跨域请求会丢失cookie信息
        corsConfiguration.setAllowCredentials(true);

        source.registerCorsConfiguration("/**",corsConfiguration);

        return new CorsWebFilter(source);
    }
}

提示 ： 调用的具体服务去掉跨域配置

首页访问

3.2 首页

---

获取鉴权信息

• 源码

oauth2.0 获取鉴权


/**
 * Copyright 2006-2011 the original author or authors.
 *
 * Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with
 * the License. You may obtain a copy of the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on
 * an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the
 * specific language governing permissions and limitations under the License.
 */
package org.springframework.security.oauth2.provider.authentication;

import java.io.IOException;

import javax.servlet.Filter;
import javax.servlet.FilterChain;
import javax.servlet.FilterConfig;
import javax.servlet.ServletException;
import javax.servlet.ServletRequest;
import javax.servlet.ServletResponse;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.apache.commons.logging.Log;
import org.apache.commons.logging.LogFactory;
import org.springframework.beans.factory.InitializingBean;
import org.springframework.security.authentication.AbstractAuthenticationToken;
import org.springframework.security.authentication.AnonymousAuthenticationToken;
import org.springframework.security.authentication.AuthenticationDetailsSource;
import org.springframework.security.authentication.AuthenticationEventPublisher;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.authentication.BadCredentialsException;
import org.springframework.security.authentication.InsufficientAuthenticationException;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.AuthenticationException;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.security.oauth2.common.exceptions.OAuth2Exception;
import org.springframework.security.oauth2.provider.OAuth2Authentication;
import org.springframework.security.oauth2.provider.error.OAuth2AuthenticationEntryPoint;
import org.springframework.security.web.AuthenticationEntryPoint;
import org.springframework.security.web.authentication.preauth.PreAuthenticatedAuthenticationToken;
import org.springframework.util.Assert;

/**
 * A pre-authentication filter for OAuth2 protected resources. Extracts an OAuth2 token from the incoming request and
 * uses it to populate the Spring Security context with an {@link OAuth2Authentication} (if used in conjunction with an
 * {@link OAuth2AuthenticationManager}).
 *
 * @author Dave Syer
 *
 */
public class OAuth2AuthenticationProcessingFilter implements Filter, InitializingBean {

	private final static Log logger = LogFactory.getLog(OAuth2AuthenticationProcessingFilter.class);

	private AuthenticationEntryPoint authenticationEntryPoint = new OAuth2AuthenticationEntryPoint();

	private AuthenticationManager authenticationManager;

	private AuthenticationDetailsSource<HttpServletRequest, ?> authenticationDetailsSource = new OAuth2AuthenticationDetailsSource();

	private TokenExtractor tokenExtractor = new BearerTokenExtractor();

	private AuthenticationEventPublisher eventPublisher = new NullEventPublisher();

	private boolean stateless = true;

	/**
	 * Flag to say that this filter guards stateless resources (default true). Set this to true if the only way the
	 * resource can be accessed is with a token. If false then an incoming cookie can populate the security context and
	 * allow access to a caller that isn't an OAuth2 client.
	 *
	 * @param stateless the flag to set (default true)
	 */
	public void setStateless(boolean stateless) {
		this.stateless = stateless;
	}

	/**
	 * @param authenticationEntryPoint the authentication entry point to set
	 */
	public void setAuthenticationEntryPoint(AuthenticationEntryPoint authenticationEntryPoint) {
		this.authenticationEntryPoint = authenticationEntryPoint;
	}

	/**
	 * @param authenticationManager the authentication manager to set (mandatory with no default)
	 */
	public void setAuthenticationManager(AuthenticationManager authenticationManager) {
		this.authenticationManager = authenticationManager;
	}

	/**
	 * @param tokenExtractor the tokenExtractor to set
	 */
	public void setTokenExtractor(TokenExtractor tokenExtractor) {
		this.tokenExtractor = tokenExtractor;
	}

	/**
	 * @param eventPublisher the event publisher to set
	 */
	public void setAuthenticationEventPublisher(AuthenticationEventPublisher eventPublisher) {
		this.eventPublisher = eventPublisher;
	}

	/**
	 * @param authenticationDetailsSource The AuthenticationDetailsSource to use
	 */
	public void setAuthenticationDetailsSource(
			AuthenticationDetailsSource<HttpServletRequest, ?> authenticationDetailsSource) {
		Assert.notNull(authenticationDetailsSource, "AuthenticationDetailsSource required");
		this.authenticationDetailsSource = authenticationDetailsSource;
	}

	public void afterPropertiesSet() {
		Assert.state(authenticationManager != null, "AuthenticationManager is required");
	}

	public void doFilter(ServletRequest req, ServletResponse res, FilterChain chain) throws IOException,
			ServletException {

		final boolean debug = logger.isDebugEnabled();
		final HttpServletRequest request = (HttpServletRequest) req;
		final HttpServletResponse response = (HttpServletResponse) res;

		try {

			Authentication authentication = tokenExtractor.extract(request);

			if (authentication == null) {
				if (stateless && isAuthenticated()) {
					if (debug) {
						logger.debug("Clearing security context.");
					}
					SecurityContextHolder.clearContext();
				}
				if (debug) {
					logger.debug("No token in request, will continue chain.");
				}
			}
			else {
				request.setAttribute(OAuth2AuthenticationDetails.ACCESS_TOKEN_VALUE, authentication.getPrincipal());
				if (authentication instanceof AbstractAuthenticationToken) {
					AbstractAuthenticationToken needsDetails = (AbstractAuthenticationToken) authentication;
					needsDetails.setDetails(authenticationDetailsSource.buildDetails(request));
				}
				Authentication authResult = authenticationManager.authenticate(authentication);

				if (debug) {
					logger.debug("Authentication success: " + authResult);
				}

				eventPublisher.publishAuthenticationSuccess(authResult);
				SecurityContextHolder.getContext().setAuthentication(authResult);

			}
		}
		catch (OAuth2Exception failed) {
			SecurityContextHolder.clearContext();

			if (debug) {
				logger.debug("Authentication request failed: " + failed);
			}
			eventPublisher.publishAuthenticationFailure(new BadCredentialsException(failed.getMessage(), failed),
					new PreAuthenticatedAuthenticationToken("access-token", "N/A"));

			authenticationEntryPoint.commence(request, response,
					new InsufficientAuthenticationException(failed.getMessage(), failed));

			return;
		}

		chain.doFilter(request, response);
	}

	private boolean isAuthenticated() {
		Authentication authentication = SecurityContextHolder.getContext().getAuthentication();
		if (authentication == null || authentication instanceof AnonymousAuthenticationToken) {
			return false;
		}
		return true;
	}

	public void init(FilterConfig filterConfig) throws ServletException {
	}

	public void destroy() {
	}

	private static final class NullEventPublisher implements AuthenticationEventPublisher {
		public void publishAuthenticationFailure(AuthenticationException exception, Authentication authentication) {
		}

		public void publishAuthenticationSuccess(Authentication authentication) {
		}
	}

}

3.2.1 先从请求头中获取

	protected String extractToken(HttpServletRequest request) {
		// first check the header...
        --------------------------------------------------------------
		String token = extractHeaderToken(request);
        --------------------------------------------------------------
		// bearer type allows a request parameter as well
		if (token == null) {
			logger.debug("Token not found in headers. Trying request parameters.");
			token = request.getParameter(OAuth2AccessToken.ACCESS_TOKEN);
			if (token == null) {
				logger.debug("Token not found in request parameters.  Not an OAuth2 request.");
			}
			else {
				request.setAttribute(OAuth2AuthenticationDetails.ACCESS_TOKEN_TYPE, OAuth2AccessToken.BEARER_TYPE);
			}
		}

		return token;
	}

/**
	 * Extract the OAuth bearer token from a header.
	 *
	 * @param request The request.
	 * @return The token, or null if no OAuth authorization header was supplied.
	 */
	protected String extractHeaderToken(HttpServletRequest request) {
        ---------------------------------------------------------------------------
		Enumeration<String> headers = request.getHeaders("Authorization");
        ----------------------------------------------------------------------------
		while (headers.hasMoreElements()) { // typically there is only one (most servers enforce that)
			String value = headers.nextElement();
			if ((value.toLowerCase().startsWith(OAuth2AccessToken.BEARER_TYPE.toLowerCase()))) {
				String authHeaderValue = value.substring(OAuth2AccessToken.BEARER_TYPE.length()).trim();
				// Add this here for the auth details later. Would be better to change the signature of this method.
				request.setAttribute(OAuth2AuthenticationDetails.ACCESS_TOKEN_TYPE,
						value.substring(0, OAuth2AccessToken.BEARER_TYPE.length()).trim());
				int commaIndex = authHeaderValue.indexOf(',');
				if (commaIndex > 0) {
					authHeaderValue = authHeaderValue.substring(0, commaIndex);
				}
				return authHeaderValue;
			}
		}

		return null;
	}

3.2.2 从请求参数中获取

protected String extractToken(HttpServletRequest request) {
		// first check the header...
		String token = extractHeaderToken(request);

		// bearer type allows a request parameter as well
		if (token == null) {
			logger.debug("Token not found in headers. Trying request parameters.");
            -------------------------------------------------------------------
			token = request.getParameter(OAuth2AccessToken.ACCESS_TOKEN);
            -------------------------------------------------------------------
			if (token == null) {
				logger.debug("Token not found in request parameters.  Not an OAuth2 request.");
			}
			else {
				request.setAttribute(OAuth2AuthenticationDetails.ACCESS_TOKEN_TYPE, OAuth2AccessToken.BEARER_TYPE);
			}
		}

		return token;
	}

---

3.2.3 问题

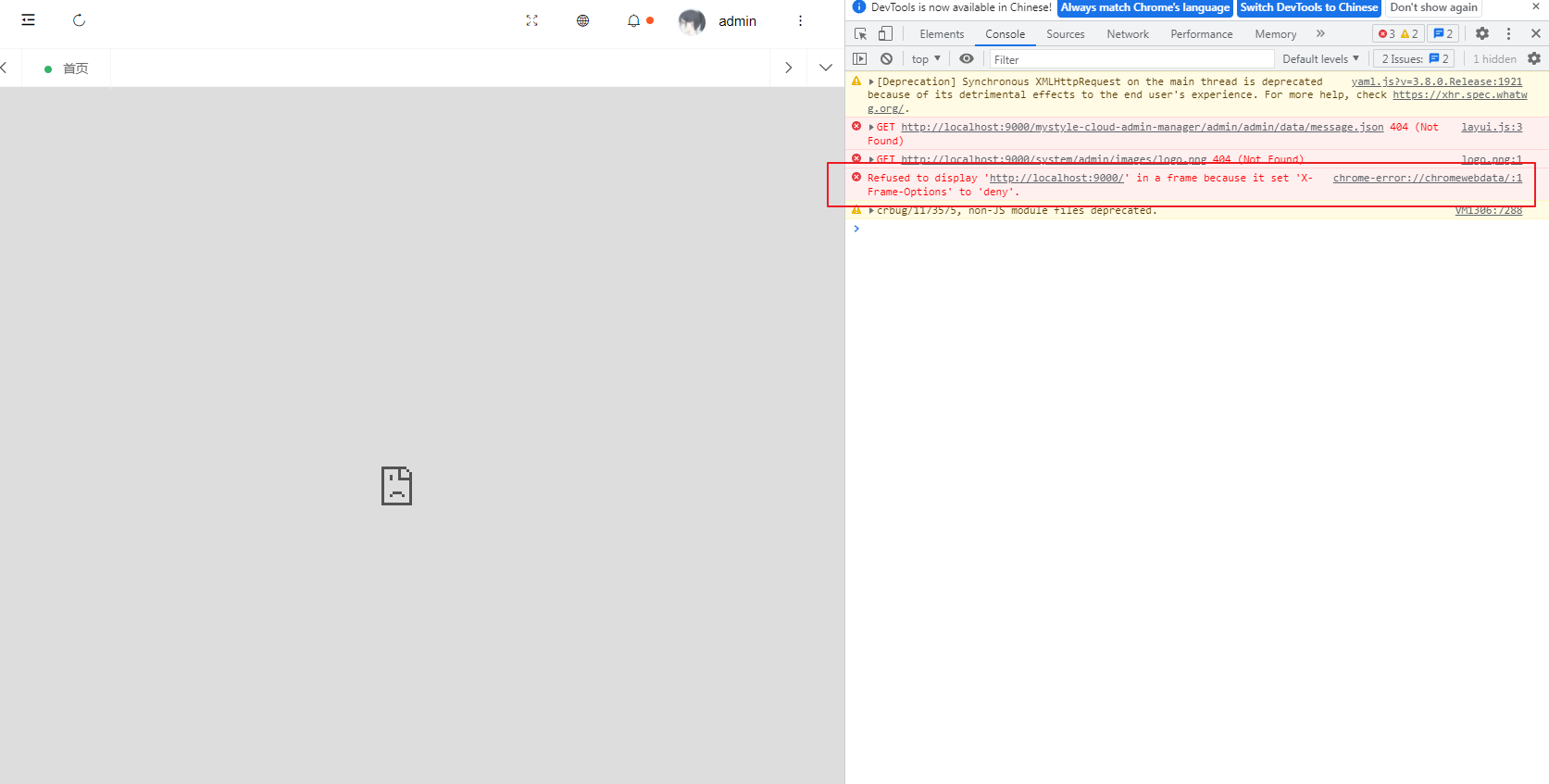

首页不展示

控制台报错 Refused to display 'http://localhost:9000/' in a frame because it set 'X-Frame-Options' to 'deny'.

解决办法

http.headers().frameOptions().disable();

token 过期展示

3.3 文件上传

解决办法

spring:
  servlet:
    multipart:
      max-file-size: 4GB
      max-request-size: 4GB

3.4 feign 远程调用

报错 ：nested exception is feign.RetryableException: too many bytes written executing

• 解决办法

   // 跳过 content-length
   if (element.equals("content-length")){
       continue;
   }

@Configuration
public class FeignOauth2RequestInterceptor implements RequestInterceptor {
    @Override
    public void apply(RequestTemplate requestTemplate) {
        // 获取的全部请求信息
        ServletRequestAttributes attributes = (ServletRequestAttributes) RequestContextHolder.getRequestAttributes();
        if (attributes != null){
            HttpServletRequest request = attributes.getRequest();
            // 获取所有的请求头信息
            Enumeration<String> headerNames = request.getHeaderNames();
            if (headerNames != null){
                while (headerNames.hasMoreElements()){
                    // 获取请求头的key
                    String element = headerNames.nextElement();
                    // 获取请求头的value
                    String value = request.getHeader(element);
    ----------------------------------------------------------------------------------------------------------------
                    // 跳过 content-length
                    if (element.equals("content-length")){
                        continue;
                    }
    ----------------------------------------------------------------------------------------------------------------
                    // 将请求头信息放入到请求头
                    requestTemplate.header(element,value);
                }
            }
        }
    }
}

4. 博客展示

4.1 详情

4.2 关于我

5.小说展示

5.2 小说展示
